How Your Indoor and Outdoor AC Units Tag Team the Heat

Why Understanding How the Compressor, Evaporator, and Condenser Function Saves You Time, Money, and Comfort

How the compressor evaporator and condenser function comes down to one core idea: your AC doesn't create cold air — it moves heat out of your home. Here's a quick breakdown:

Your AC system is split into two sides — a hot side (outdoor unit) and a cold side (indoor unit). The compressor, condenser, evaporator, and a metering device work in a continuous loop, using refrigerant to carry heat from inside your home and dump it outside.

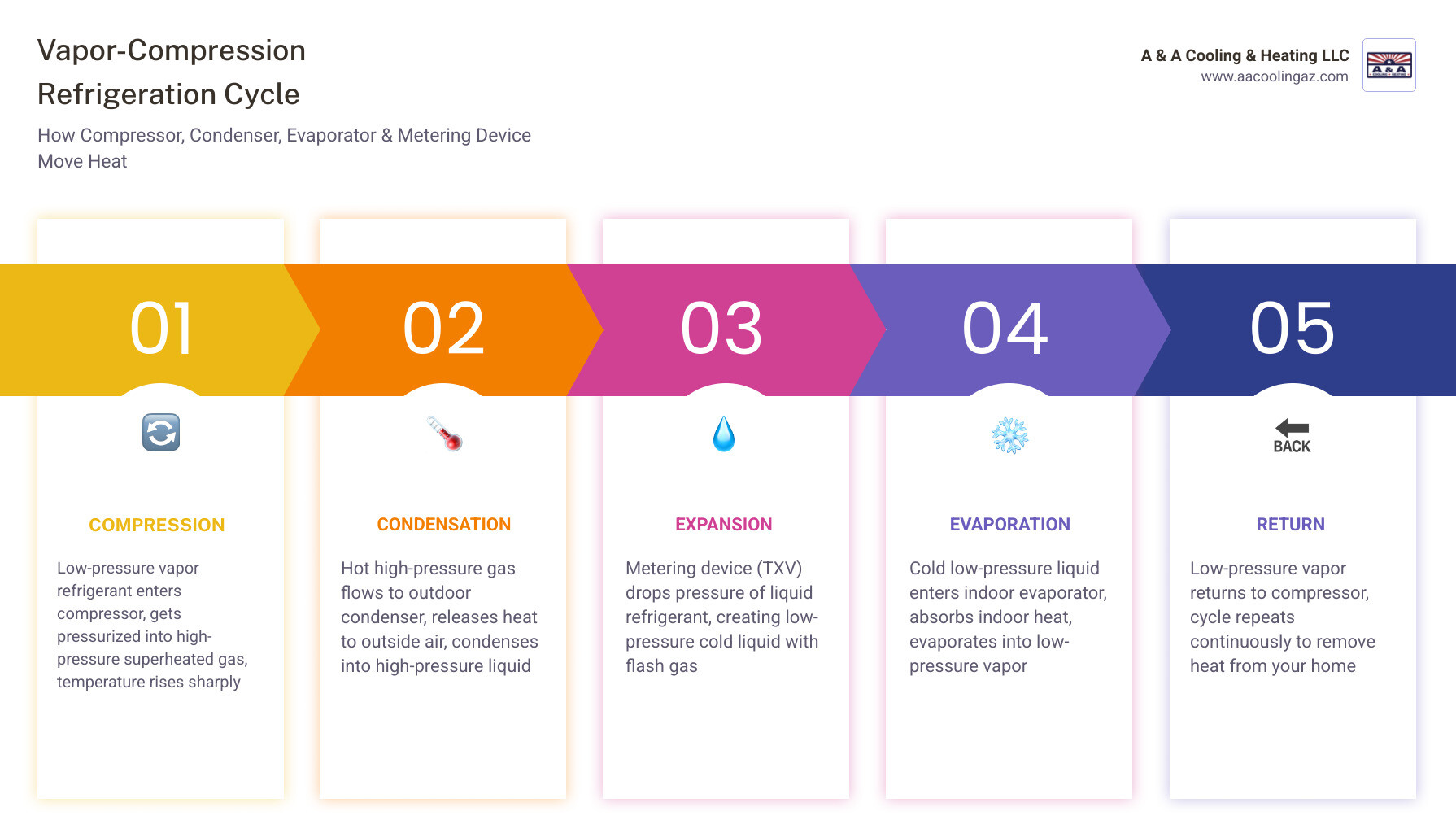

This process is called the vapor-compression refrigeration cycle, and it powers everything from your home refrigerator to large commercial cooling systems. On a blazing Arizona summer day in Apache Junction or anywhere across the Phoenix Valley, this cycle runs hard — and understanding it helps you spot problems early, maintain your system better, and know when to call in a pro.

The Science of Cooling: How the Compressor Evaporator and Condenser Function Together

To understand how the compressor evaporator and condenser function, we first have to look at the "blood" of the system: the refrigerant. Refrigerant is a specialized chemical blend that has an incredibly low boiling point. While water boils at 212°F, some modern refrigerants like R-410A boil at roughly -55°F. This unique property allows it to change from a liquid to a gas at very low temperatures, which is the secret to absorbing heat from your living room.

The entire process relies on thermodynamic principles—specifically the second law of thermodynamics, which states that heat naturally moves from a warmer area to a cooler one. By manipulating the pressure of the refrigerant, your AC creates a "cold side" (the evaporator) that is cooler than your indoor air and a "hot side" (the condenser) that is hotter than the outdoor Arizona air.

For a deeper dive into the chemicals making this possible, check out our Ultimate AC Refrigerant Guide.

How the Compressor Evaporator and Condenser Function to Move Heat

Think of the refrigeration cycle as a delivery service. The refrigerant is the delivery truck, and heat is the package.

1. At the evaporator, the "truck" is empty and cold, so it picks up heat from your home.
2. The compressor gives the truck the energy it needs to travel.
3. At the condenser, the truck arrives at its destination and "unloads" the heat into the outdoor air.
4. The metering device resets the truck, making it cold and empty again for the next trip.

During this loop, the refrigerant constantly shifts between states. It enters the compressor as a saturated vapor (100% gas) and leaves the condenser as a subcooled liquid.

The Role of the Metering Device in the Cycle

While the "big three" components get all the glory, the cycle wouldn't work without the metering device, often a Thermostatic Expansion Valve (TXV). Located just before the evaporator, this device acts like the nozzle on an aerosol spray can.

It restricts the flow of high-pressure liquid refrigerant, causing a sudden pressure drop. This drop causes a phenomenon called "flashing," where a small portion of the liquid instantly boils into a gas (flash gas), rapidly cooling the remaining liquid to its lowest temperature before it enters the indoor coils.

The Compressor: The High-Pressure Heart of Your AC

If the refrigeration cycle is a body, the compressor is undoubtedly the heart. Its job is to circulate the refrigerant and, more importantly, to add the mechanical work necessary to raise the refrigerant's pressure and temperature.

When the low-pressure, cool vapor enters the compressor through the suction line, the compressor squeezes the molecules together. Imagine a crowded room where suddenly the walls start closing in; as people are packed tighter, they bump into each other more, and the "energy" (heat) in the room rises. This is exactly what happens to the refrigerant. It leaves the compressor through the discharge line as a high-pressure, superheated gas.

Different Types of Compressors Used in Modern Systems

Depending on the size of your home or business in Mesa or Gilbert, you might have one of several compressor types:

Why Superheat is Critical for Compressor Safety

Compressors are designed to compress gas, not liquid. Liquids are non-compressible. If liquid refrigerant enters the compressor—a nightmare scenario known as "liquid slugging"—it can lead to catastrophic mechanical damage, essentially "hydro-locking" the heart of your system.

To prevent this, we ensure the refrigerant has enough superheat. This means the gas is heated well above its boiling point before it leaves the evaporator, ensuring it is 100% vapor by the time it reaches the compressor. This is also why suction line insulation is so important; it prevents the refrigerant from picking up too much extra heat from the attic or crawlspace before it gets to the compressor.

The Condenser: Rejecting Heat to the Arizona Air

Once the compressor has turned the refrigerant into a hot, high-pressure gas, it heads to the outdoor unit: the condenser. In our desert climate, the condenser has a tough job. It has to take that heat and push it into air that might already be 110°F.

The condenser functions in three stages:

1. Desuperheating: The hot gas enters and starts to cool down.
2. Condensing: The refrigerant releases its latent heat and turns from a gas back into a liquid.
3. Subcooling: The liquid is cooled further below its boiling point to ensure it stays a liquid until it reaches the metering device.

Keeping these coils clean is vital for efficiency. If the aluminum fins are clogged with dust or desert "monsoon" debris, the heat can't escape. Residents in the East Valley often rely on our AC Coil Cleaning Scottsdale services to keep this stage of the cycle running smoothly.

Air-Cooled vs Water-Cooled Condensers

Most residential systems in Arizona use air-cooled condensers. These use a large fan to force ambient air over copper tubes and aluminum fins. The fins increase the surface area, maximizing the thermal conductivity and allowing the heat to escape more quickly. While some large industrial plants use water-cooled systems, air-cooled is the gold standard for Phoenix-area homes due to our water conservation needs.

Why the Condenser Feels Hot to the Touch

If you’ve ever walked past your outdoor unit and felt a blast of hot air, that’s actually a sign the system is working! The condenser is releasing the energy it gathered from inside your house. Because the compressor raised the refrigerant's temperature to be much hotter than the outside air, the heat naturally flows out of the coils and into the environment.

The Evaporator: Where the Real Cooling Happens

The evaporator is the "business end" of the AC. Located inside your home (usually in the attic, a closet, or paired with your furnace), this is where the actual cooling of your indoor air occurs.

As the cold, low-pressure liquid refrigerant enters the evaporator, it is much colder than the air being blown over it by the blower fan. The refrigerant absorbs the heat from your home's air, causing the liquid to boil and turn into a vapor. This exchange doesn't just lower the temperature; it also provides dehumidification. As warm air hits the cold coils, moisture in the air condenses into water droplets, which are then carried away by the condensate drain.

If your system isn't cooling properly, you might need AC Evaporator Coil Repair to restore that heat-absorbing power.

How the Evaporator Absorbs Indoor Heat

The evaporator works on the principle of "latent heat of vaporization." It takes a lot of energy to turn a liquid into a gas. By forcing the refrigerant to evaporate inside the coils, the system "steals" that energy (heat) from your indoor air. If you're noticing uneven cooling or high humidity, you might be facing AC Evaporator Coil Problems in Homes.

Preventing Evaporator Coil Freezing

One of the most common calls we get in Apache Junction is for a frozen AC. It sounds like a contradiction—how can an AC be too cold? If there is restricted airflow (like a dirty filter) or a refrigerant leak, the coil temperature can drop below freezing. Moisture from the air then turns to ice on the coils, eventually blocking all airflow.

To learn more about this specific frustration, read about AC Coil Freezing Problems Apache Junction.

Troubleshooting and Efficiency: Keeping the Cycle Running Smoothly

In the HVAC world, we measure efficiency using the Coefficient of Performance (COP) and SEER ratings. The COP is a ratio of the heat removed to the work put in by the compressor. Basically, it tells us how much "bang for your buck" you're getting.

How the Compressor Evaporator and Condenser Function in the Arizona Heat

Our climate puts a unique "thermal stress" on these components. When it's 115°F in Phoenix, the "heat gain" of your home is massive. The compressor has to work much harder to create a temperature difference high enough to dump heat outside. This is why regular maintenance isn't just a luxury here—it’s a necessity to prevent premature mechanical wear.

Common Issues Affecting Component Performance

Most industrial systems expect components to last a long time, but in residential settings, you might see parts need attention every 3 to 7 years. Common issues include:

• Dirty Coils: Reduces heat transfer at both the evaporator and condenser.
• Restricted Airflow: Causes the evaporator to freeze and the compressor to overheat.
• Refrigerant Leaks: Disrupts the pressure-temperature relationship, making the whole cycle fail.
• Electrical Wear: Capacitors and contactors that power the compressor can fail due to the intense summer heat.

Frequently Asked Questions about AC Components

What is the most important part of the refrigeration cycle?

While it's often called a "cycle" because every part is essential, the compressor is the most critical mechanical part. Without it, the refrigerant wouldn't move, and the pressure changes required for heat transfer wouldn't happen. However, the evaporator is technically the "mission" of the system, as it's what actually cools your home.

Why does my AC have both an indoor and outdoor unit?

It’s all about heat relocation. You need an indoor unit (evaporator) to collect the heat and an outdoor unit (condenser) to release it. If both were in the same room, you’d just be moving heat from one side of the room to the other, resulting in no net cooling (and actually making the room hotter due to the heat generated by the motor!).

How often should I have my compressor and coils inspected?

In Arizona, we recommend a professional inspection at least twice a year—once before the cooling season and once before the heating season. Because our systems run almost year-round, dust and heat can degrade performance quickly.

Conclusion

Understanding how the compressor evaporator and condenser function helps you appreciate the hard work your AC does every single day. From the "flashing" of refrigerant in the expansion valve to the intense pressurization in the compressor, it is a finely tuned dance of physics and engineering.
